Product Description:

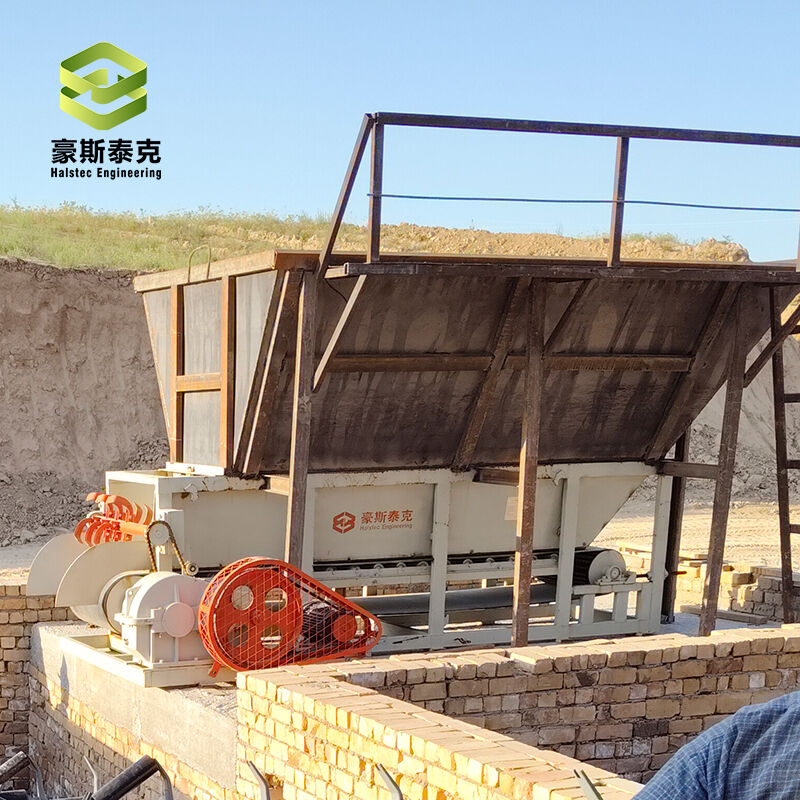

The specialized box feeder for brick factories is a high-efficiency, stable, and forced continuous feeding device developed specifically for the characteristics of raw materials (such as shale, coal gangue, clay, fly ash, and sludge) used in the brick and tile sintering industry. Located below the raw material storage, its core function is to uniformly, continuously, and adjustably transport mixed raw materials with various compositions, moisture content, and particle sizes to the next process (such as crushing, mixing, or aging). It is a key upstream device for ensuring stable brick quality, improving production line efficiency, and achieving automated control.
Features:
Box Structure:
-Main Box: Constructed from thickened steel plates, ensuring a robust structure and strong resistance to deformation. The inner wall can be lined with wear-resistant plates to further extend its service life.
-Anti-clogging Design: Inspection and cleaning doors are located at the rear or side of the box. Some models are equipped with wall vibrators or agitators specifically designed to handle extremely sticky and wet materials.
Conveying System:
-Conveyor Chain/Scraper: Utilizes heavy-duty engineering chain traction, equipped with high-strength scrapers or a grid-like bottom plate, forcibly propelling materials forward, providing strong conveying force and preventing slippage.
-Abrasion-Resistant Treatment: The working surfaces of the scrapers and bottom plate are overlaid with wear-resistant welds or inlaid with wear-resistant blocks, increasing wear resistance by 3-5 times.
Drive and Adjustment System:
-Drive Unit: Equipped with a national standard brand geared motor, ensuring smooth transmission and strong overload capacity.
-Stepless speed regulation: Standard configuration includes a frequency converter, allowing for adjustable operating speed within the rated range (e.g., 0.1-1 m/s), thus precisely controlling the feed rate (e.g., 30-300 tons/hour) to meet the needs of different formulations and outputs.
Support and walking mechanism:
-The entire unit is mounted on a heavy-duty channel steel base, ensuring smooth operation.
-An optional rail-mounted design is available, allowing for movement and feeding under multiple hoppers, offering multi-purpose functionality, improving equipment utilization, and saving investment.
Technical Parameters:
| Product Type |
Brick Making Machinery |
| Power |
5.5KW |
| Capacity |
15-50m3/hr |
| Brick Raw Material |
Clay |
| Warranty |
1 Year |
| Model |
GD80 |
| Name |
Box Feeder |
Applications:
-Raw material pre-homogenization feeding: Uniformly feeds materials from the raw material stockpile or storage silo to the crusher.
-Core feeder of the batching line: As the execution unit of the multi-raw material automatic batching system, it precisely controls the proportion and flow rate of various raw materials.
-Aging room material extraction: Uniformly extracts material from the bottom of the aging silo and conveys it to the mixing and extrusion section.
-Waste brick recycling feeding: Stably returns waste brick blanks, waste residue, and other recycled materials to the production process.
Support and Services:
Product Technical Support and Services for Brick Burning Machine
Our Brick Burning Machine comes with comprehensive technical support to ensure optimal performance and longevity. Our team of experts is dedicated to assisting you with installation, operation, maintenance, and troubleshooting.
Installation Support: We provide detailed installation guides and on-site support to help you set up your Brick Burning Machine correctly and safely.
Operation Guidance: Comprehensive manuals and training sessions are available to help your operators understand the machine’s functions and best practices for efficient use.
Maintenance Services: Regular maintenance is crucial for the durability of the Brick Burning Machine. We offer preventive maintenance schedules and on-demand servicing to keep your equipment running smoothly.
Troubleshooting Assistance: Our technical support team is available to diagnose and resolve any issues that may arise during the operation of your machine, minimizing downtime.
Spare Parts Availability: We maintain an inventory of genuine spare parts to ensure quick replacement and repair, supporting continuous operation of your machinery.
Upgrades and Updates: Stay up-to-date with the latest enhancements and improvements for your Brick Burning Machine through our upgrade programs.
We are committed to providing reliable and prompt support to maximize your productivity and ensure your satisfaction with our Brick Burning Machine.
FAQ:
Q1: What is the brand and model number of the Brick Burning Machine?
A1: The Brick Burning Machine is manufactured by Halstec and the model number is Box Feeder.
Q2: Where is the Brick Burning Machine made?
A2: The machine is made in China.
Q3: What certifications does the Brick Burning Machine have?
A3: The machine is certified with CE and ISO standards.
Q4: What is the minimum order quantity and price for the Brick Burning Machine?
A4: The minimum order quantity is 1 set and the price is negotiable.
Q5: What are the delivery time and payment terms for the Brick Burning Machine?
A5: The delivery time is 70 days after receiving the advanced payment. Payment terms accepted are L/C and T/T.
